Type-1 Hose（BS6391）
Our products including Various type fire hose, oil and water delivery hose and agriculture hose and Industry hose, mining hose ect. Diamter from 1"to 8"and working pressure from 8KG to 20 KG(8Bar,10Bar,13Bar,20Bar),with the length from 10M to 60M.
- Commodity name： Type-1 Hose（BS6391）
- Describe
-
Hose construcion:
Jacket
100% polyester high tenacity yarn,circular woven,
Warp thread 2-ply twised,twill weave
Inner lining
PU(polyurethane)
Exterior
Uncoated,natural white
Standard lengths
15m,20m,30m,40m,other length available.

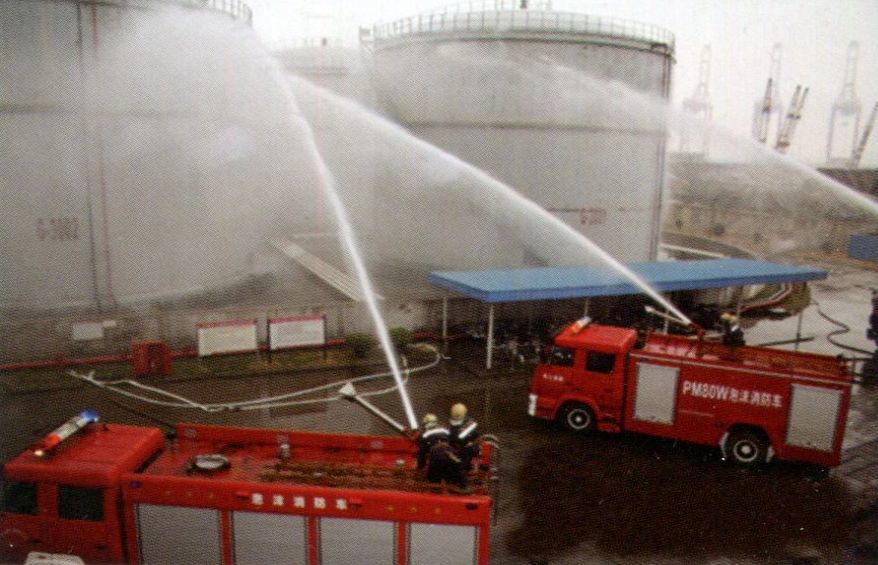

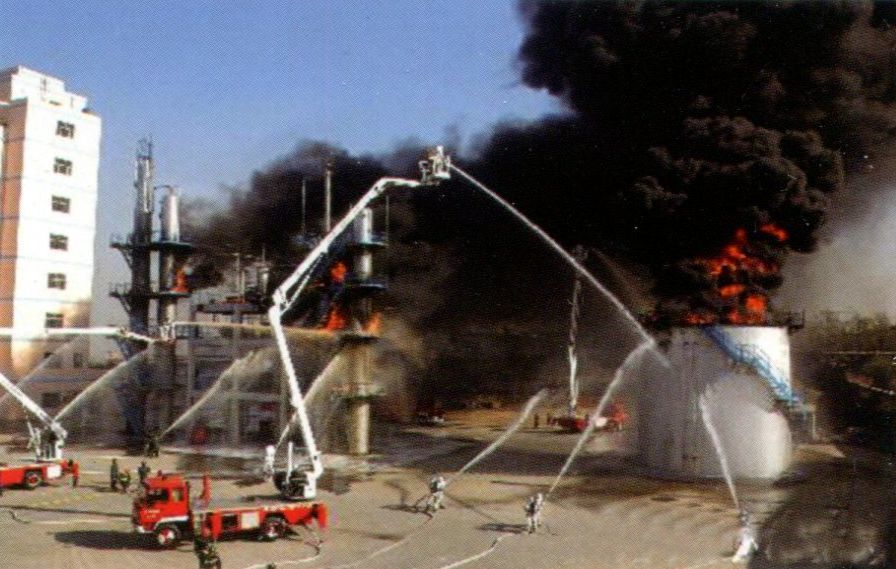

Application
Municipal fire brigades
Industrial fire brigades
Agriculture irrigation
Shipboard,airport
Refineries
Construction sites
Mil
Coupling avaiable
System storz,BS,Italy,NPT and NST&Machino coupling
Standard
GB5246,EN14540,BS6391,etc
TECHNICAL FEATURES
Model Inner Dia (inch) Inner Dia (mm) Working Pressure (Bar/Psi) Test Pressure (Bar/Psi) Burst Pressure (Bar/Psi) LY13 1 1/2" 40 13/190 20/290 ≥39/565 1 3/4" 45 13/190 20/290 ≥39/565 2" 50 13/190 20/290 ≥39/565 2 1/2" 65 13/190 20/290 ≥39/565 2 3/4" 70 13/190 20/290 ≥39/565 3" 75 13/190 20/290 ≥39/565 4" 100 13/190 20/290 ≥39/565 LY16 1 1/2" 40 16/235 24/350 ≥48/700 1 3/4" 45 16/235 24/350 ≥48/700 2" 50 16/235 24/350 ≥48/700 2 1/2" 65 16/235 24/350 ≥48/700 2 3/4" 70 16/235 24/350 ≥48/700 3" 75 16/235 24/350 ≥48/700 4" 100 16/235 24/350 ≥48/700 LY20 1 1/2" 40 20/290 30/435 ≥60/870 2" 50 20/290 30/435 ≥60/870 2 1/2" 65 20/290 30/435 ≥60/870
Key words:
Natural Rubber Lining Hose | TPE/PVC Lined Canvas Hose | PU Llining Rire Hose
